Smart Magnetic Track Light

Kingornan is a supplier of smart magnetic lighting with over 10 years of experience in commercial lighting production. Kingornan’s smart magnetic track lighting offers various control methods including Zigbee, Dali, Casambi, Bluetooth MESH, and Bluetooth + WiFi.

We can assist you to complete the development of your own intelligent control app based on tuya platform for free. Let your intelligent lighting system have the unique control app that belongs to your brand, and make your intelligent system get the intelligent identification mark that belongs to your brand.

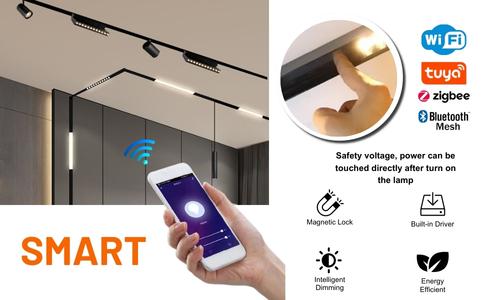

This article primarily explains the Zigbee technology-based smart magnetic track lighting system, offering unparalleled control and customization. Once connected to WiFi, you can use your smartphone with the Tuya App to pair with the gateway (hub), enabling the addition of magnetic track lights to your lighting system. After pairing, manage the entire smart magnetic lighting system with the Tuya App, or use voice commands with Google Home and Amazon Alexa to adjust the color temperature (3CCT) and brightness, creating a unique lighting atmosphere.

Of course, I also produce various styles of spotlights to complement the use.

The 24V/48V smart magnetic track lighting system comes in black or white shell colors, with four styles: embedded, surface-mounted, hanging, and plastering. It features a variety of lights including Fold Magnetic Grille Spotlights, Spotlight With Framing, Magnetic Grid Spotlights, Magnetic Linear Floodlights, Magnetic Track Spotlights, and Magnetic pendant lights, among others.

Smart Magnetic Track Light Main Features:

Safety Assured: Operates under safe DC36V low voltage.
Intuitive Smart Control: Easily manage your lighting using Zigbee and the Tuya smart app. Control brightness, color temperature, set schedules, and scenes through a smartphone or voice commands.
Customizable Lighting: Dimmable lighting that can be adjusted to the desired ambiance.

Versatility in Style: Offers a wide range including the standard M20 series and numerous ultra-thin smart magnetic lighting series like B/H/L/M/Y.
Easy Magnetic Installation: Simple to install and adjust the entire lighting system.
Seamless Compatibility: Works with other Zigbee-supported devices.
Comprehensive Supply: With a wide range of smart magnetic lights, tracks, accessories, and smart gateways, kingornan offers a one-stop solution.

Application Of Smart Magnetic Track Lighting System

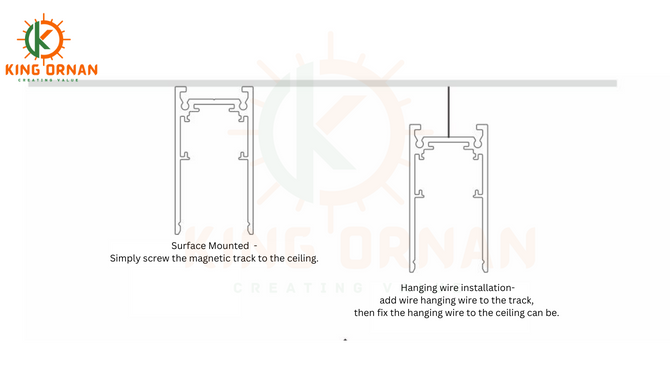

4 Types of Smart Magnetic Track:

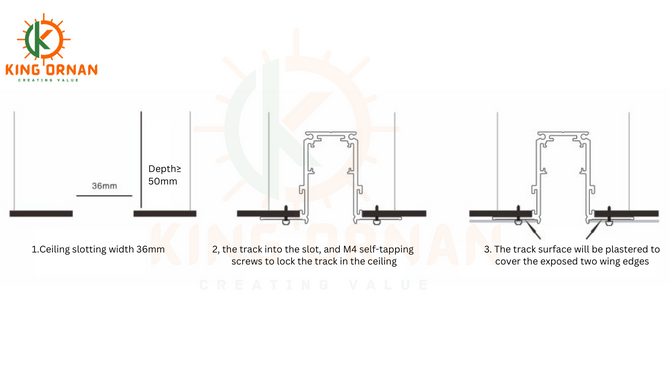

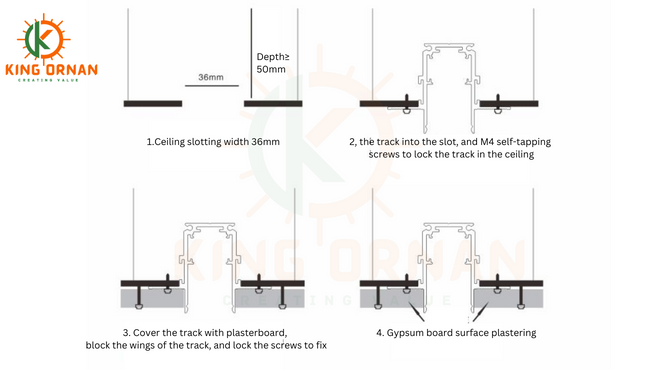

Embedded tracks are generally used for new space renovations, while surface-mounted or hanging installations are more suitable for older spaces. Tracks are available in black or white and can be freely cut. Standard lengths are 1000mm, 2000mm, and 3000mm.

Diverse Smart Dimmable Magnetic Track Light Options:

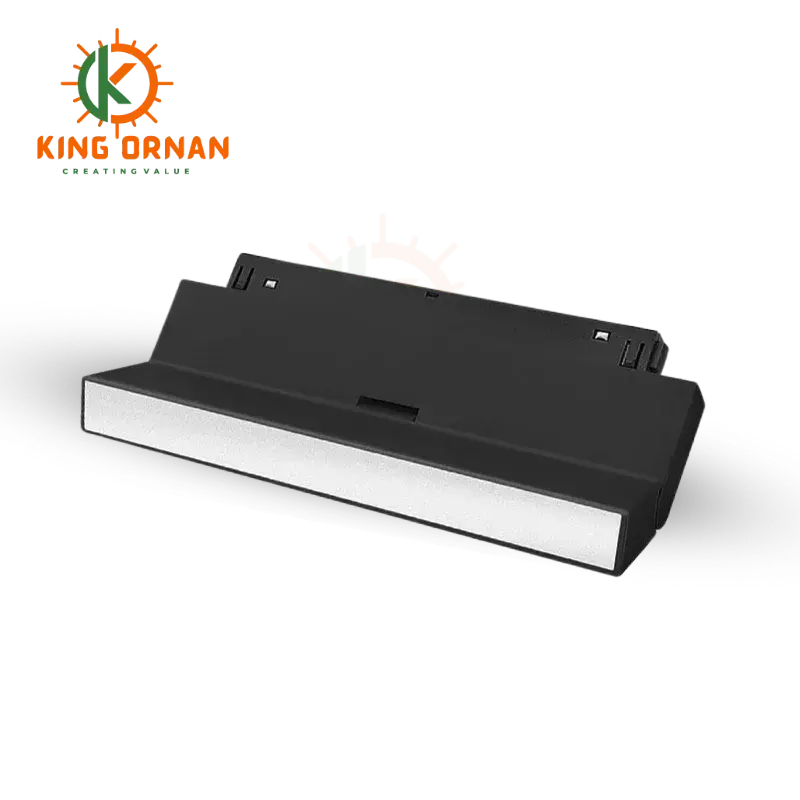

Smart Magnetic Flood Light: 15W (300mm), 25W (600mm), 40W (900mm), 50W (1200mm)

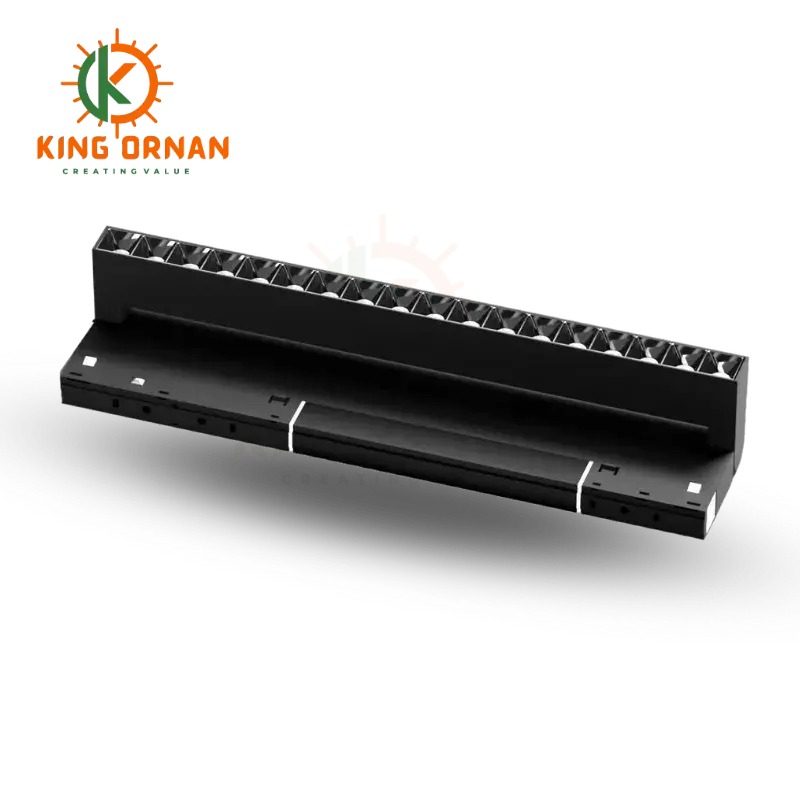

Smart Magnetic Grille Light: 6W, 12W, 18W, 24W, 30W, 36W
Smart Magnetic Track Light: 7W, 12W, 20W
Smart Spotlight with Framing: 10W, 20W, 30W
Smart Magnetic Pendant Light: 7W, 12W

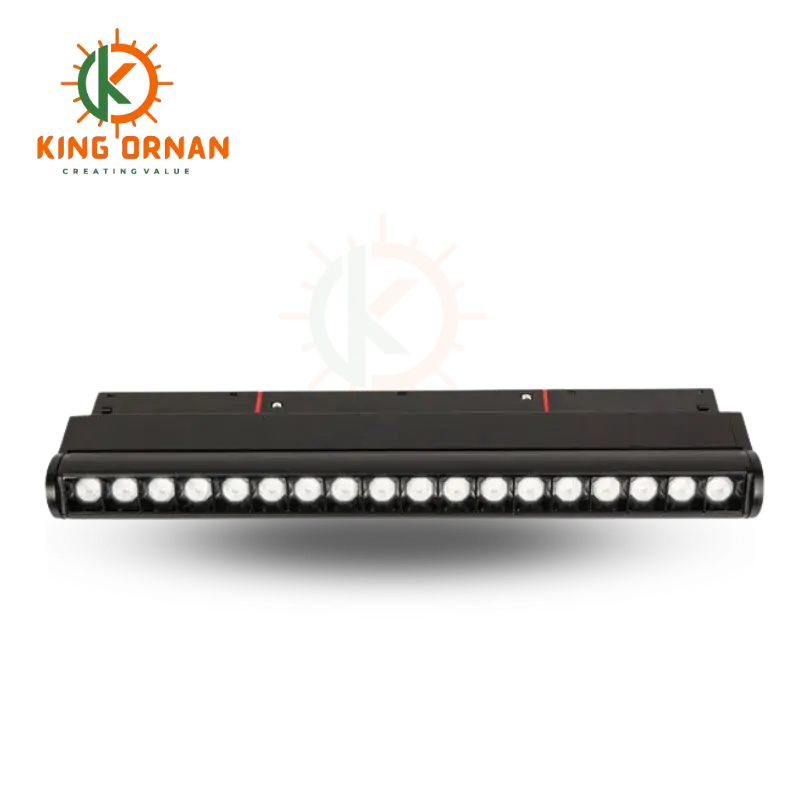

Smart Folding Magnetic Round Grille Light: 6W, 12W, 18W, 24W

This list showcases our best-selling models. For more customized styles, please feel free to inquire.

Our Partners

KingOrnan continues creating value to make long time partnership.

Connecting Zigbee Smart Gateway with Smart Dimming Magnetic Track Lights:

Gateway Connection:

To add the Zigbee gateway using the Tuya app on your smartphone, ensure that your smartphone is connected to the same WiFi network as the gateway, with the gateway’s green light flashing (for specific brand instructions, please refer to the product manual). If you encounter issues adding the gateway, consider switching to a 2.4GHz WiFi network, as 5GHz may not be compatible.

Light Connection:

Ensure magnetic track lights are installed on the track and in a flashing, pairing-ready state. If not flashing, turn the lights on-off-on-off-on (up to five or nine times) until they flash regularly.

App Integration:

Use the Tuya App to add smart magnetic track lights to your smart home system via the Zigbee gateway.

Download the PDF file to view the detailed graphic installation steps, or click here to view the video.

This article intelligent magnetic track lighting is mainly based on tuya system with zigbee use to explain, if you use dali or casambi system, please contact our engineering team, we will provide you with corresponding services according to your specific use of intelligent systems.

Contact now to get the most competitive quotation

From the best led Magnetic Track Lighting manufacturer&supplier.

Price List

Zigbee Control Method for Tuya Smart Dimming Magnetic Track Lights

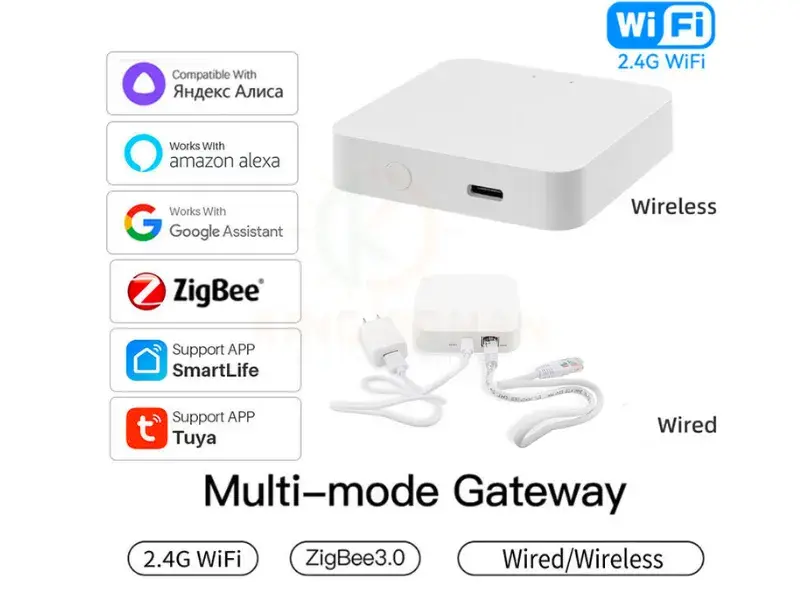

Smart Hub Selection:

Zigbee systems must be used with a gateway. Wireless gateways can support 40-60 magnetic track lights, while wired gateways can support Around 100.

Tuya App:

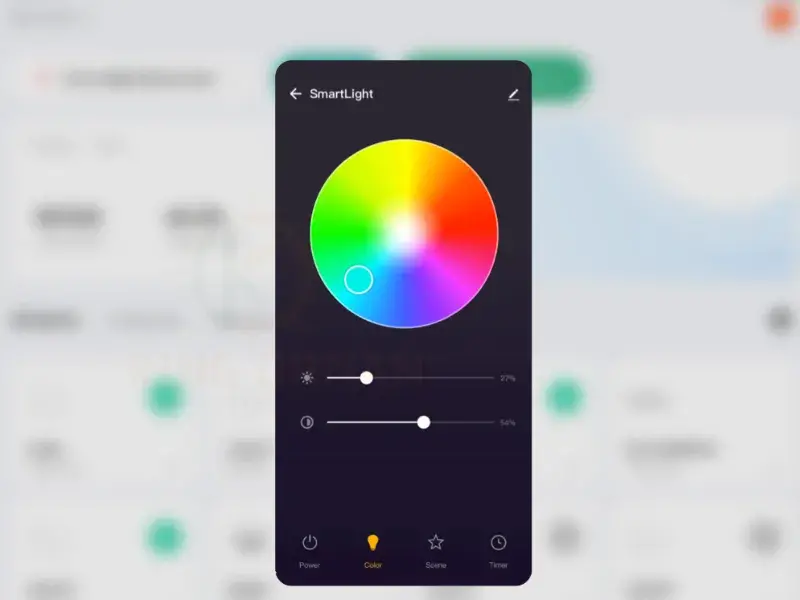

Download the Tuya App on your smartphone, select Zigbee, and add the magnetic track lights to the smart magnetic system. Control lights, brightness, color temperature, schedules, scenes, and more. Remote control is possible from anywhere with internet access.

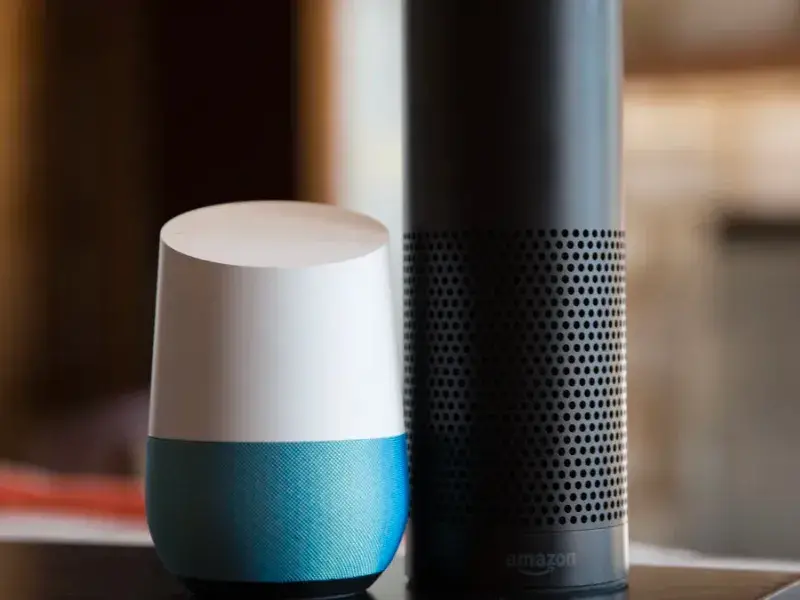

Voice Control with Google Home and Amazon Alexa:

Prerequisites: Ensure Wi-Fi can access Google services, own a Google Home device or an Android phone supporting Google Assistant, and install the latest Google Home and Google apps (Android needed). Have a Google account and set your phone’s language to English US. Install and log in to the Tuya smart app, add devices, and rename them in English.
Google Home Configuration: Download the Google Home App on iOS or Android, configure your Google Home device, connect to Wi-Fi, select language, and set up Google Assistant. Agree to Google’s personalization data collection.

Device Addition in Home Control: Add the Tuya Smart App account on the Google Home App homepage. Select Tuya Smart from the device list, enter your account details, and use the verification code from the Tuya smart app to bind the account.
Controlling the Smart Magnetic System: You can now use voice commands through Google Home to control smart magnetic lights, such as turning them on/off, adjusting brightness, and setting colors.

For detailed Google Home and Amazon Alexa voice control instructions, please download the PDF file.

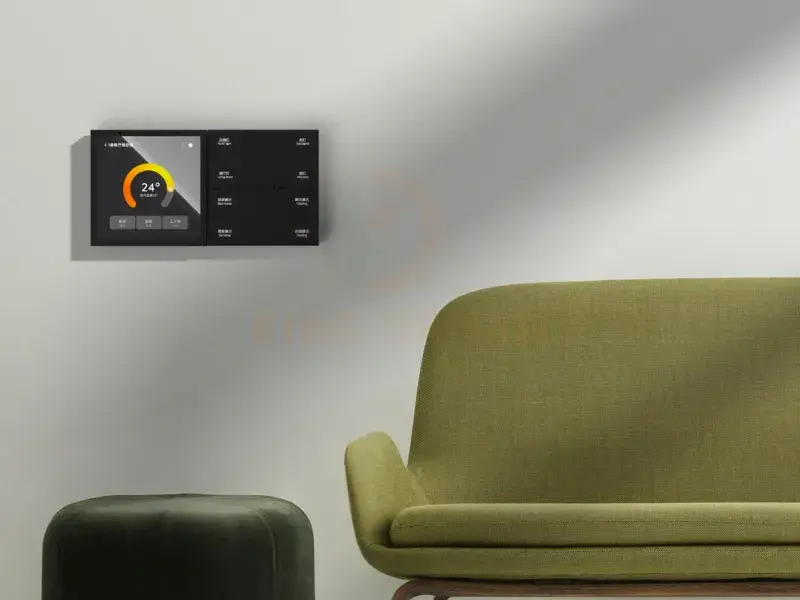

Smart Control Panel

Offers the same functionality as the mobile app, including setting scene modes, group control, adjusting color temperature and brightness, and accepting voice commands.

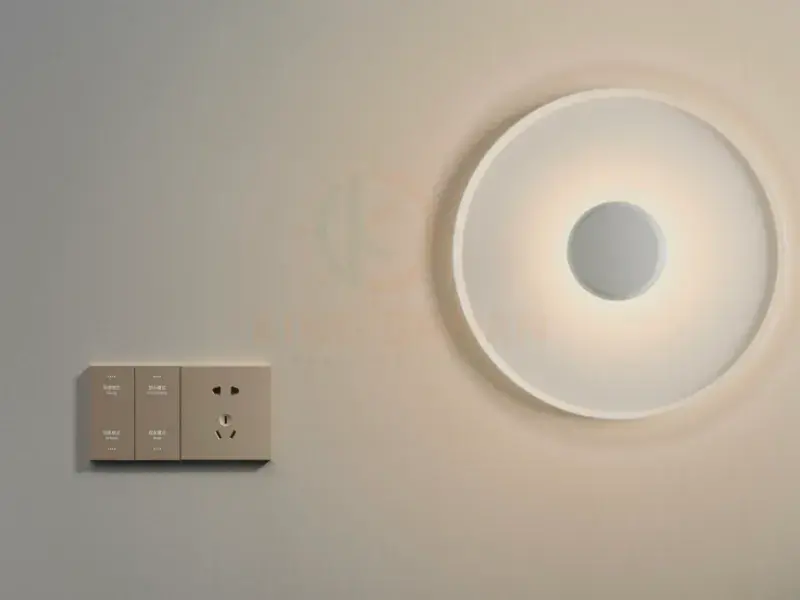

Wireless Smart Zigbee Switch:

Requires no wiring, can be attached to any wall with 3M adhesive, and used as a remote control to operate smart dimmable magnetic lights, including on/off, color temperature, and brightness adjustments.

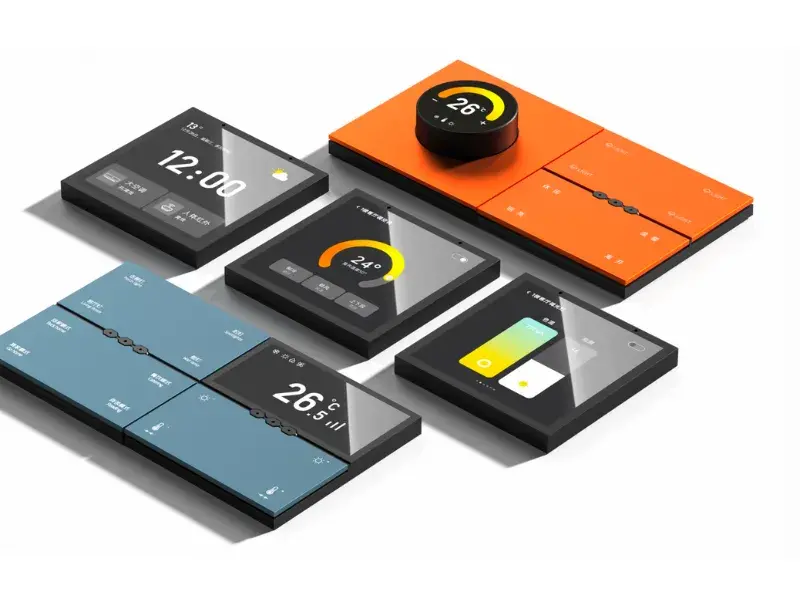

Smart Wall Switch:

Requires wiring and can replace traditional switches, controlling smart light on/off functions.

Note: Conventional switches cut off power when turned off, preventing control from mobile apps or other smart devices. Smart wall switches, when turned off, do not cut off power, allowing other devices to control the lights.

Why Choose kingOrnan?

Certification and Compliance: Our magnetic linear track lights have passed multiple certifications, including CE and ERP. Additionally, we are willing to seek extra certifications (such as CSA, SASO, CB) to meet your market’s corresponding certification requirements.
Quality Control and Manufacturing: We have operated a lighting manufacturing factory for over 10 years and have invested in raw materials and supporting factories, achieving quality control from the source. This vertical integration allows us to strictly control product quality and ensure that we can offer stable and reliable products at favorable prices.

Custom Services and Support: We focus on custom services and customer service systems, committed to meeting the unique needs of global customers. Our goal is to offer the most favorable deals through prompt response and continuous support, ensuring customer satisfaction.
Extensive Experience: With over 10 years of experience in the commercial lighting industry, our rich experience ensures that we have the knowledge and expertise to solve your product issues and can offer high-quality, customized solutions tailored to various needs.
Comprehensive Product Line: King Ornan offers a complete magnetic track system product line, ensuring that customers can meet all their purchasing needs in one stop. This one-stop solution not only saves you time but also allows you to purchase high-quality magnetic track lights at the most favorable prices.
High-Quality Components: We select light sources from well-known brands such as Osram, Philips, and CREE. By using top-tier light sources, we ensure the reliability and longevity of our magnetic track lights.
Advanced Technology Solutions: We provide intelligent magnetic track lighting systems integrated with 2.4G TUYA WIFI, Bluetooth, ZIGBEE, and other technologies. These smart solutions meet the lighting system’s needs for connectivity and control.
